L_IPAP_ParameterWrite

The L_IPAP_ParameterWrite function block serves to write the device and PLC parameters of the Lenze Controller from the PLC application.

Name Datentyp	Value / meaning
xExecute BOOL	FALSE ä TRUE	With the rising edge of the xExecute input, the write request of a parameter is started.
xAbort BOOL	FALSE ä TRUE	Abort processing of the FB
wIndex WORD	Index of the parameter to be write
bySubIndex BYTE	Subindex in the object dictionary of the master or the slave
udiTimeOut UDINT	Timeout in milliseconds [ms] The value '0' corresponds to a request without timeout.
pDataBuffer POINTER TO BYTE	Reference to the memory buffer into which the values to be written are to be taken.
udiDataSize UDINT	Number of the bytes to be written

Name Datentyp	Value / meaning
xDone BOOL	TRUE	Processing is completed
xBusy BOOL	TRUE	Processing is running
xAborted BOOL	TRUE	Processing of the FB has been aborted.
xError BOOL	TRUE	An error has occurred. For details see eErrorID .
eErrorId L_IPAP_ERRORID	If xError = TRUE: Error number for the error that has occurred.

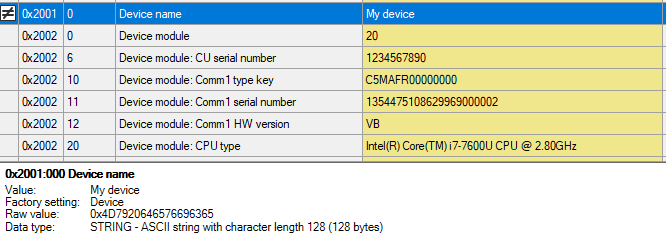

Write parameter 0x2001:000 “Device name” (data type: STRING)

PROGRAM PLC_PRG

VAR

END_VAR

fbParameterWrite(xExecute := write,

);

Write parameter 0x2451:001 “Engineering port settings: IP address” (data type: UDINT)

PROGRAM PLC_PRG

VAR

END_VAR

(* write IP address setting by UDINT value*)

udiIPaddr := 16#6305A8C0; //-> 192.168.5.99

fbParameterWrite(xExecute := write,

);

(* or write IP address setting with array of 4 BYTES*)

abyIPaddr[0]:= 192;

abyIPaddr[1]:= 168;

abyIPaddr[2]:= 5;

abyIPaddr[3]:= 99;

fbParameterWrite(

);
