L_UMTP_BilinearInterpolation
|

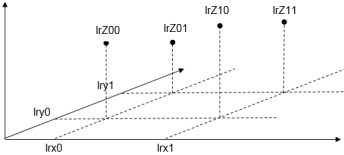

Bilinear interpolation function |
|---|
|
|
|
|
|
L_UMTP_BilinearInterpolation |
|
|
|
|
|---|---|---|---|---|---|---|---|
|
LREAL |
- |
|
lrX0 |
lrZ |
|
- |
LREAL |
|
LREAL |
- |
|
lrX1 |
|
|
|
|
|
LREAL |
- |
|
lrY0 |
|
|
|
|
|
LREAL |
- |
|
lrY1 |
|
|
|
|
|
LREAL |
- |
|
lrZ00 |
|
|
|
|
|
LREAL |
- |
|
lrZ01 |
|
|
|
|
|
LREAL |
- |
|
lrZ10 |
|
|
|
|
|
LREAL |
- |
|
lrZ11 |
|
|
|
|
|
LREAL |
- |
|
lrX |
|
|
|
|
|
LREAL |
- |
|
lrY |
|
|
|
|
|
|
|
|
|
|
|
|
|
Inputs
|
Name Data type |
Information/possible settings |
|
|---|---|---|
|
lrX0 LREAL |
Start x interval |
|
|
lrX1 LREAL |
End x interval |
|
|
lrY0 LREAL |
Start y interval |
|
|
lrY1 LREAL |
End y interval |
|
|
lrZ00 LREAL |
Function value at lrX0 and lrY0 |
|
|
lrZ01 LREAL |
Function value at lrX0 and lrY1 |
|
|
lrZ10 LREAL |
Function value at lrX1 and lrY0 |
|
|
lrZ11 LREAL |
Function value at lrX1 and lrY1 |
|
|
lrX LREAL |
Argument x |
|
|
lrY LREAL |
Argument y |
|
Outputs
|
Name Data type |
Value/meaning |
|
|---|---|---|
|
lrZ LREAL |
Function value at lrX and lrY |
|
|
L_UMTP_Bilinear
BOOL |
FALSE |
Incorrect parameterization lrX0 and lrX1 respectively lrY0 and lrY1 must not be equal. |
