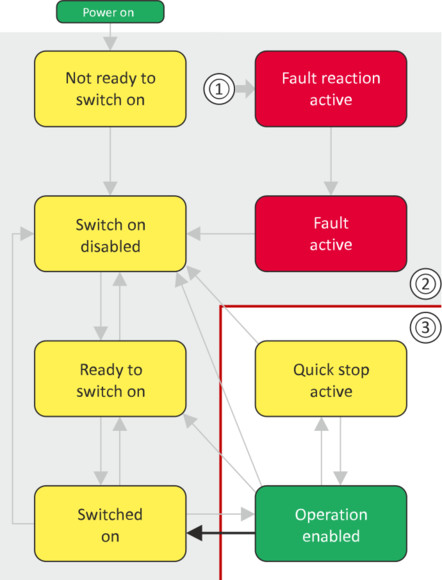

Disable operation
This command disables the enabled operation again.
–
The pulse inhibit is set (pulses of the inverter are inhibited).
–
If automatic brake operation is activated, the parameterized Brake closing time (0x2820:002 (P712.02)) is observed: The system waits until the brake is applied before the pulse inhibit is set. In the CiA 402 "CiA: Velocity mode", the Brake closing time is not observed.
–
A changeover to the "Switched on" device state takes place.
|
|
|
|
1
|
From all states
|
|
2
|
Power section disabled (pulse inhibit)
|
|
3
|
Power section enabled
|
|
Bit pattern in the CiA control word (0x6040)
|
||||||||
|
Bit 15 ... 8
|
Bit 7
|
Bit 6
|
Bit 5
|
Bit 4
|
Bit 3
|
Bit 2
|
Bit 1
|
Bit 0
|
|
Reserved
(specific)
|
Reset fault
|
Operating mode dependent
|
Operation enabled
|
Activate quick stop
|
Establish readiness for operation
|
Switch-on
|
||
|
X = state is not relevant
|
||||||||
|
X
|
0
|
X
|
X
|
X
|
0
|
1
|
1
|
1
|
