Pulse inhibit
This command disables the output stages of the inverter.
–
The pulse inhibit is activated (pulses of the inverter are inhibited) if not already active.
–
The motor has no torque.
–
A changeover to the "Switch-on inhibited" device state takes place.
DANGER!Uncontrolled motor movements by pulse inhibit.
If the motor has no torque, a load that is connected to motors without a holding brake may cause uncontrolled movements! Without a load, the motor will coast.
Possible consequences: Death or severe injuries
▶
Only operate the inverter under permissible load conditions.
|
|
|
|
1
|

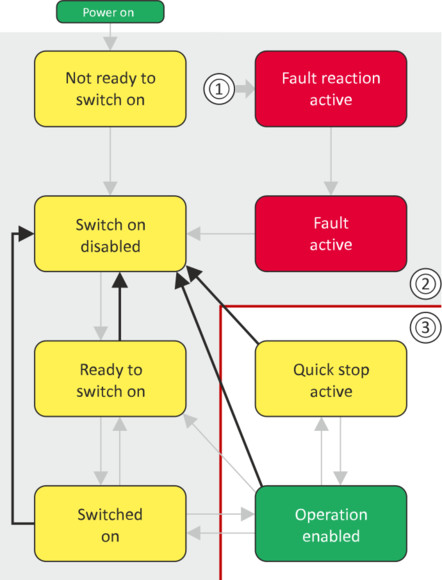

From all states
|
|
2
|
Power section inhibited (pulse inhibit)
|
|
3
|
Power section enabled
|
|
Bit pattern in the CiA control word (0x6040)
|
||||||||
|
Bit 15 ... 8
|
Bit 7
|
Bit 6
|
Bit 5
|
Bit 4
|
Bit 3
|
Bit 2
|
Bit 1
|
Bit 0
|
|
Reserved
(specific)
|
Reset fault
|
Operating mode dependent
|
Operation enabled
|
Activate quick stop
|
Establish readiness for operation
|
Switch-on
|
||
|
X = state is not relevant
|
||||||||
|
X
|
0
|
X
|
X
|
X
|
X
|
X
|
0
|
X
|
