Reset fault
This command resets a pending fault if the cause of the fault has been eliminated.
–
The pulse inhibit remains active (pulses of the inverter are inhibited).
–
A changeover to the "Switch-on inhibited" device status takes place (switch-on inhibit remains active).
|
|
|
|

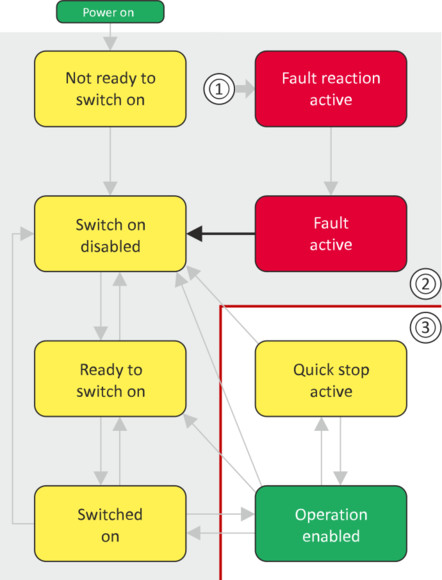

1
|
From all states
|
|
2
|
Power section inhibited (pulse inhibit)
|
|
3
|
Power section enabled
|
|
Bit pattern in the CiA control word (0x6040)
|
||||||||
|
Bit 15 ... 8
|
Bit 7
|
Bit 6
|
Bit 5
|
Bit 4
|
Bit 3
|
Bit 2
|
Bit 1
|
Bit 0
|
|
Reserved
(specific)
|
Reset fault
|
Operating mode dependent
|
Operation enabled
|
Activating quick stop
|
Establish readiness for operation
|
Switch-on
|
||
|
X = state is not relevant
|
||||||||
|
X
|
0
↗ 1 |
X
|
X
|
X
|
X
|
X
|
X
|
X
|
