Display of status words on keypad

Some diagnostics parameters contain bit-coded status words. Each single bit has a certain meaning.

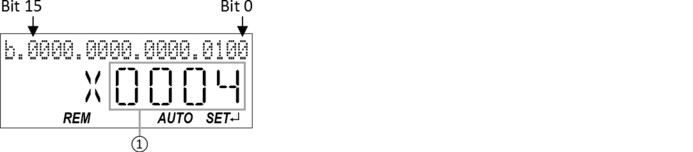

Display of 16-bit status words on the keypad

①	Hexadecimal value

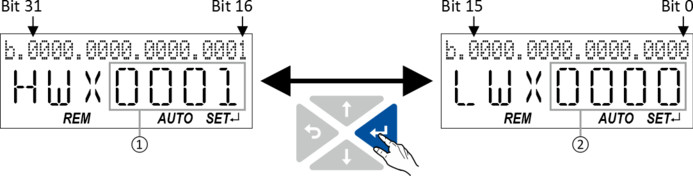

Display of 32-bit status words on the keypad

①	Hexadecimal value High word (HW)
②	Hexadecimal value Low word (LW)
