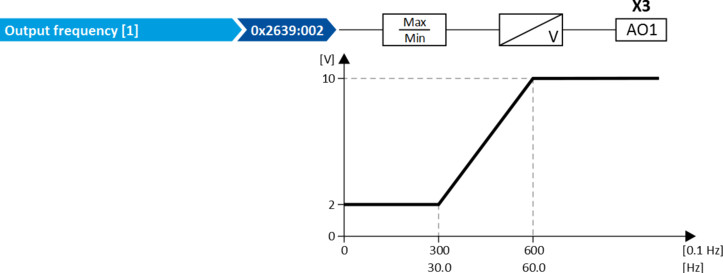

Example: Output voltage 2 ... 10 V = output frequency 30 ... 60 Hz
In this configuration, the output range 2 ... 10 V is used for the output of the output frequency (resolution: 0.1 Hz). The example shows how the signals outside the signal range (here: 30 ... 60 Hz) are cut off.
|
Parameter
|
Designation
|
Setting for this example
|
|
Analog output 1: Output range
|
2 ... 10 VDC [3]
|
|
|
Analog output 1: Function
|
Output frequency [1]
|
|
|
Analog output 1: Min. signal
|
300
|
|
|
Analog output 1: Max. signal
|
600
|
|
|
