Example: Input range 0 ... 10 V = setting range -40 ... +40 Hz

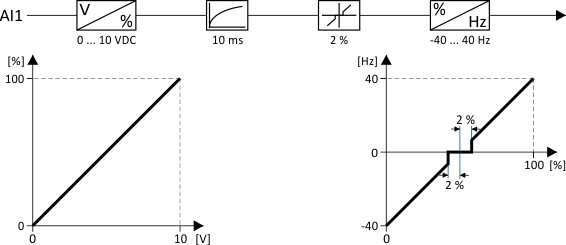

In this example, a bipolar setting range and a dead band with 2 % are configured.
|
Parameter
|
Designation
|
Setting for this example
|
|
Analog input 1: Input range
|
0 ... 10 VDC [0]
|
|
|
Analog input 1: Min frequency value
|
-40.0 Hz
|
|
|
Analog input 1: Max frequency value
|
40.0 Hz
|
|
|
Analog input 1: Filter time
|
10 ms
|
|
|
Analog input 1: Dead band
|
2.0 %
|
|
|
