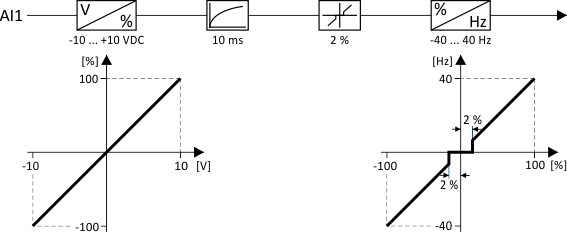

Example: Input range -10 ... +10 V = setting range -40 ... +40 Hz
In this example, the input range of the analog input is bipolar. For the setting range that is bipolar as well, a dead band with 2 % is configured.
|
Parameter
|
Designation
|
Setting for this example
|
|
Analog input 1: Input range
|
-10 ... +10 VDC [3]
|
|
|
Analog input 1: Min frequency value
|
-40.0 Hz
|
|
|
Analog input 1: Max frequency value
|
40.0 Hz
|
|
|
Analog input 1: Filter time
|
10 ms
|
|
|
Analog input 1: Dead band
|
2.0 %
|
|
|
