Example: Error detection

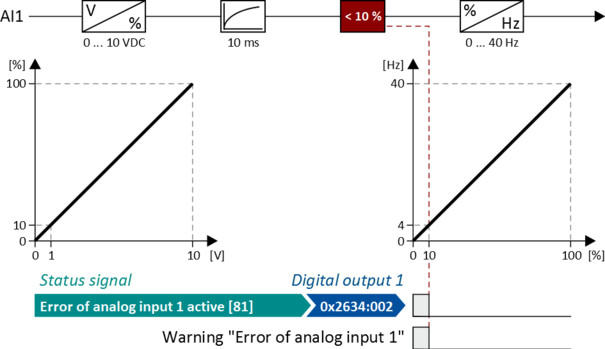

In this example, the digital output 1 is set via the trigger "Error of analog input 1 active [81]" if the percentage input value is lower than 10 %. Additionally, a warning is output.
|
Parameter
|
Designation
|
Setting for this example
|
|
Digital outputs function: Digital output 1
|
Error of analog input 1 active [81]
|
|
|
Analog input 1: Input range
|
0 ... 10 VDC [0]
|
|
|
Analog input 1: Min frequency value
|
0.0 Hz
|
|
|
Analog input 1: Max frequency value
|
40.0 Hz
|
|
|
Analog input 1: Filter time
|
10 ms
|
|
|
Analog input 1: Monitoring threshold
|
10.0 %
|
|
|
Analog input 1: Monitoring condition
|
Input value < trigger threshold [0]
|
|
|
Analog input 1: Error response
|
Warning [1]
|
|
|
