Configuring the motor control
This chapter contains all functions and settings relevant for the motor control.
Basic procedure of commissioning the motor control
In the first step, the rated data of the motor must be set. The other steps depend on the respective application case.

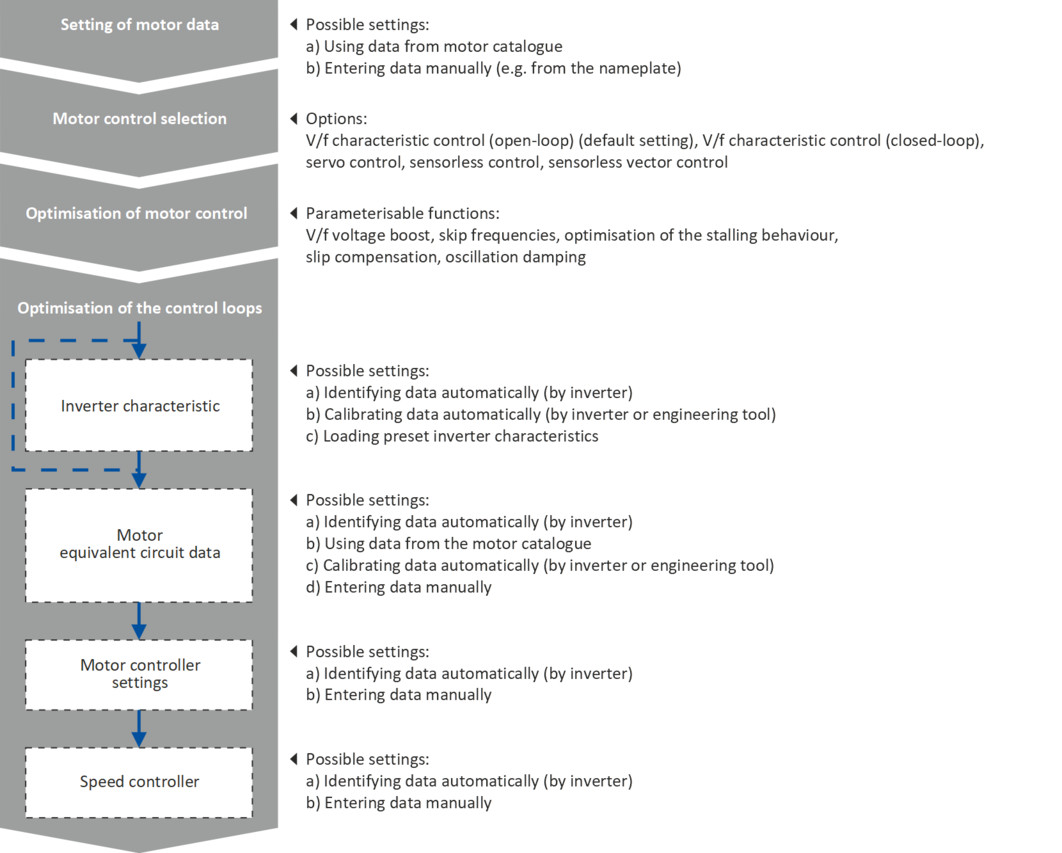

There are several options for setting the motor data and optimising the control loops. Basically, you can select between a manual and an automatic process. Whether a setting can be applied or not depends on the motor (Lenze motor yes/no) and the application. If possible, always use the possible setting listed first in the following diagram since this one leads to the most accurate results.
Motor dataGuide for this chapter
In the following subchapters, each motor control type is described in detail:
This chapter also contains information on the following subjects:
