Example: mirrored output range
For the definition of the output range, configurations are also available in 0x2639:001 (P440.01) where negative analog output values are mirrored symmetrically on the Y axis. This makes it possible to realize an absolute value generation.
The following examples illustrate the function:
|
Parameter
|
Name
|
Setting for this example
|
|
Analog output 1: Output range
|
0 ... 10 VDC (mirrored) [11]
|
|
|
Analog output 1: Min. signal
|
0
|
|
|
Analog output 1: Max. signal
|
> 0
|
|

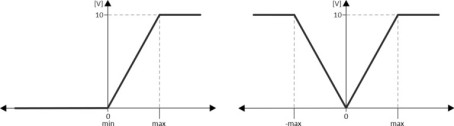

Diagram on the left: without mirroring, diagram on the right: with mirroring of the negative output values on the Y axis
|
|
|
|
Parameter
|
Name
|
Setting for this example
|
|
Analog output 1: Output range
|
0 ... 10 VDC (mirrored) [11]
|
|
|
Analog output 1: Min. signal
|
<0
|
|
|
Analog output 1: Max. signal
|
> 0
|
|

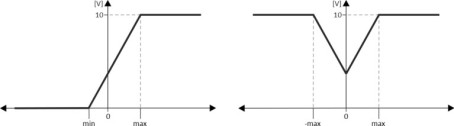

Diagram on the left: without mirroring, diagram on the right: with mirroring of the negative output values on the Y axis
|
|
|
|
Parameter
|
Name
|
Setting for this example
|
|
Analog output 1: Output range
|
0 ... 10 VDC (mirrored) [11]
|
|
|
Analog output 1: Min. signal
|
> 0
|
|
|
Analog output 1: Max. signal
|
> Min. signal 0x2639:003 (P440.03)
|
|

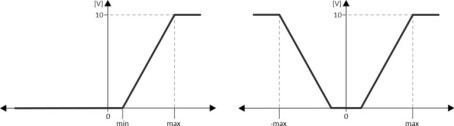

Diagram on the left: without mirroring, diagram on the right: with mirroring of the negative output values on the Y axis
|
|
|
