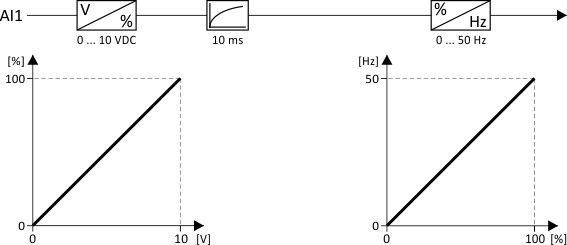

Example: Input range 0 ... 10 V = setting range 0 ... 50 Hz
In this configuration, for instance, a frequency setpoint between 0 and 50 Hz can be set with a potentiometer connected to the analog input.
|

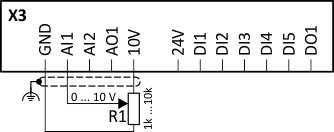

Connection plan
|
Function
|
|
|
|
Potentiometer R1
|
Frequency setpoint definition
(Input voltage 1 V = 5 Hz)
|
|
Parameter
|
Designation
|
Setting for this example
|
|
Analog input 1: Input range
|
0 ... 10 VDC [0]
|
|
|
Analog input 1: Min frequency value
|
0.0 Hz
|
|
|
Analog input 1: Max frequency value
|
50.0 Hz
|
|
|
Analog input 1: Filter time
|
10 ms
|
|
|
