Example: Start/stop (1 signal) and reversal
This example shows a simple control option via two switches which should be sufficient for many applications:
–
The switch S1 starts the motor in forward rotating direction. The switch S1 in the initial position stops the motor again.
–
The switch S2 switches the direction of rotation.
|

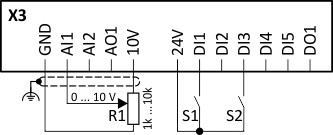

Connection plan
|
Function
|
|
|
|
Potentiometer R1
|
Frequency setpoint selection
|
|
Switch S1
|
Run
|
|
|
Switch S2
|
Reverse rotational direction
|
|
The example uses the preset I/O configuration of the inverter:
|
Parameter
|
Designation
|
Setting for this example (corresponds to default setting)
|
|
Enable inverter
|
Constant TRUE [1]
|
|
|
Run
|
Digital input 1 [11]
|
|
|
Reverse rotational direction
|
Digital input 3 [13]
|
|
The status signals can be assigned to digital outputs.
 Configure digital outputs |
|
|
|
|
|

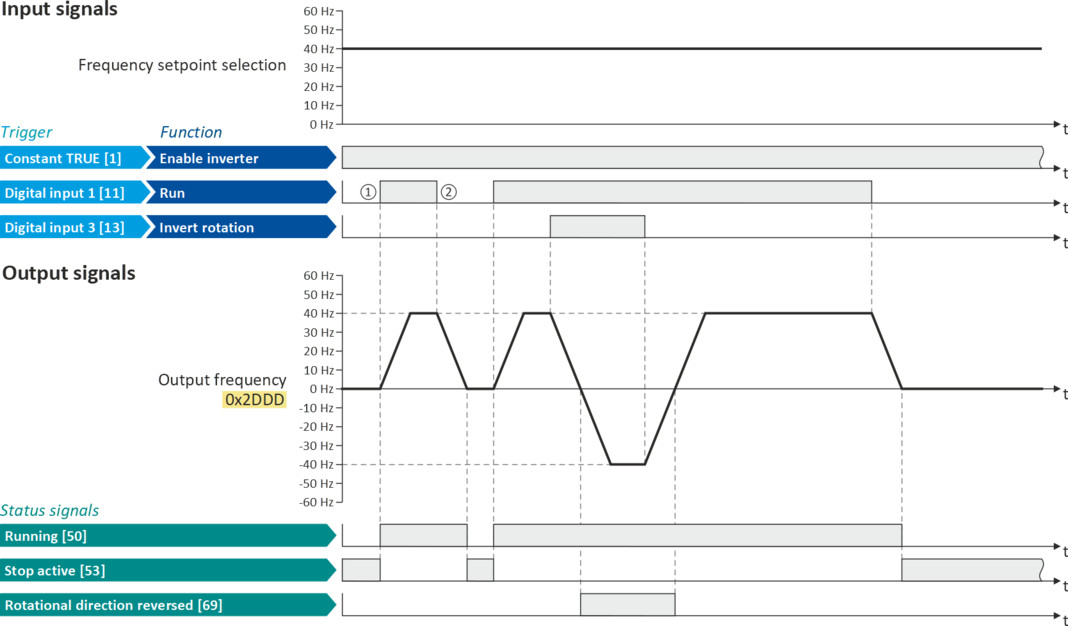

①
|
If the inverter is enabled and no error is active, the motor can be started with the "Run" function in forward rotating direction.
|
|
②
|
If "Run" is set to FALSE, the motor is stopped with the stop method set in 0x2838:003 (P203.03). In the example: Stop with standard ramp.
|
