Operation enabled
This device state represents normal operation. Operation in the selected operating mode is enabled and no errors have occurred.
–
Only the parameters of the inverter can be changed that do not require an inverter disable.
–
A motor brake, if any, is open if the automatic operation of the holding brake control is activated (0x2820:001 (P712.01) = 0).
–
The drive control is active.
|
|
|
|

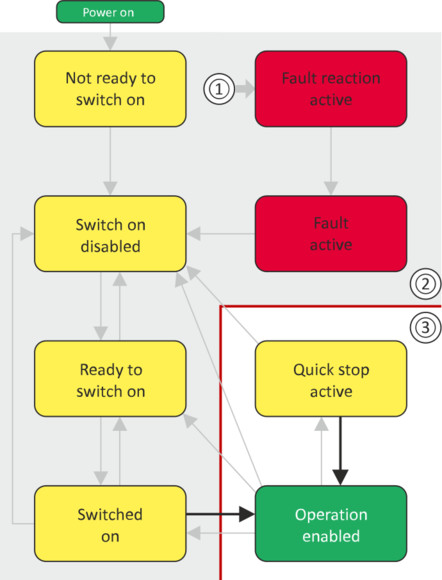

1
|
From all states
|
|
2
|
Power section inhibited (pulse inhibit)
|
|
3
|
Power section enabled
|
|
Bit pattern in the CiA status word (0x6041 (P780.00))
|
||||||||
|
Bit 15 ... 8
|
Bit 7
|
Bit 6
|
Bit 5
|
Bit 4
|
Bit 3
|
Bit 2
|
Bit 1
|
Bit 0
|
|
Reserved
(specific)
|
Warning active
|
Operation inhibited
|
Quick stop active
|
DC bus ready for operation
|
Fault active
|
Operation enabled
|
Switched on
|
Ready to switch on
|
|
X = state is not relevant
|
||||||||
|
X
|
X
|
0
|
1
|
X
|
0
|
1
|
1
|
1
|
If the device status "Operation enabled" is signalled in the CiA status word, the inverter is ready to accept set points from the network master.
