Load loss detection

This function serves to detect a load loss during operation and to then activate a specific function, for instance the switching of the relay.

Details

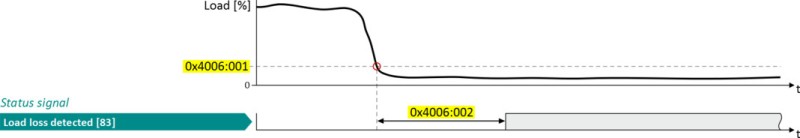

If, during operation, the current motor current falls below the threshold set in 0x4006:001 (P710.01) for at least the time set in 0x4006:002 (P710.02), the internal status signal "Load loss detected [83]" is set to TRUE:

–

The threshold is set in percent with reference to the rated motor current "Rated motor current" 0x6075 (P323.00).

–

The status signal "Load loss detected [83]" can be assigned, for instance, to a digital output or the relay via the flexible I/O configuration.

Configure digital outputs

–

An error response can be selected in 0x4006:003 (P710.03).

–

The load loss detection is not active with active DC braking.

Parameter

Address	Name / setting range / [default setting]		Information
0x4006:001 (P710.01)	Load loss detection: Threshold (Load loss detect: Threshold) 0.0 ... [0.0] ... 200.0 %		Threshold for load loss detection. – 100 % = rated motor current 0x6075 (P323.00)
0x4006:002 (P710.02)	Load loss detection: Delay time (Load loss detect: Delay time) 0.0 ... [0.0] ... 300.0 s		Tripping delay for load loss detection.
0x4006:003 (P710.03)	Load loss detection: Error response (Load loss detect: Error response) – From version 05.01		Selection of the response following the detection of a load loss. Associated event ID: – 65336 \| 0xFF38 - Load loss detected
	0	No response	Severity
	1	Warning
	2	Trouble
	3	Fault
