Sensorless vector control (SLVC)

The sensorless (field-oriented) vector control for asynchronous motors is based on a decoupled control for the torque-producing and the field-producing current component. In addition, the actual speed is reconstructed by means of a motor model so that a speed sensor is not required.

Preconditions

–

Sensorless vector control (SLVC) is only suitable for asynchronous motors.

–

Multi-motor operation is not permitted for sensorless vector control (SLVC).

Supported operating modes 0x6060 (P301.00):

–

"MS: Velocity mode [-2]"

–

"MS: Torque mode [-1]"

–

"CiA: Velocity mode (vl) [2]"

Details

Compared to the V/f characteristics, the sensorless vector control (SLVC) serves to achieve improved drive characteristics thanks to:

–

higher torque throughout the entire speed range

–

higher speed accuracy and smooth running properties

–

higher efficiency

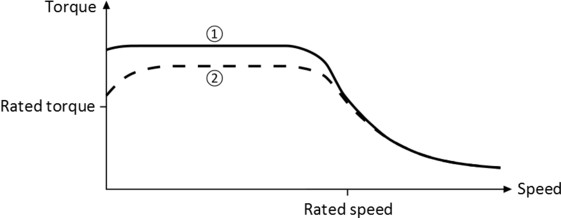

①	Sensorless vector control (SLVC)
②	V/f characteristic control for asynchronous motor (VFC open loop)
