Example: Activation if the selection is changed (immediately)
Activation method 0x4046 (P755.00) = "If the selection is changed (immediately) [3]":
–
Switches S3 and S4 serve to select the parameter set (see the following table). At the same time, the change-over is activated by a status change of the selection inputs.
–
Change-over takes place immediately, even if the motor is started (switch S1 closed).
–
Switch S2 ("Load parameter set") is ignored in this configuration.
|
Connection plan
|
Function
|
|||
|
|
Switch S1
|
Run
|
||
|
Switch S2
|
Load parameter set (is ignored in this configuration)
|
|||
|
Switches S3 ... S4
|
Parameter set selection and activation at the same time:
|
|||
|
S3
|
S4
|
|
||
|
Off
|
Off
|
Parameter set 1
|
||
|
On
|
Off
|
Parameter set 2
|
||
|
Off
|
On
|
Parameter set 3
|
||
|
On
|
On
|
Parameter set 4
|
||
|
Parameter
|
Designation
|
Setting for this example
|
|
Enable inverter
|
Constant TRUE [1]
|
|
|
Run
|
Digital input 1 [11]
|
|
|
Reset fault
|
Not connected [0]
|
|
|
Reverse rotational direction
|
Not connected [0]
|
|
|
Activate preset (bit 0)
|
Not connected [0]
|
|
|
Load parameter set
|
Digital input 2 [12]
|
|
|
Select parameter set (bit 0)
|
Digital input 3 [13]
|
|
|
Select parameter set (bit 1)
|
Digital input 4 [14]
|
|
|
Control selection
|
Flexible I/O configuration [0]
|
|
|
Activation of parameter set
|
If the selection is changed (immediately) [3]
|
|
The status signals can be assigned to digital outputs.
 Configure digital outputs |
|
|
|
|
|

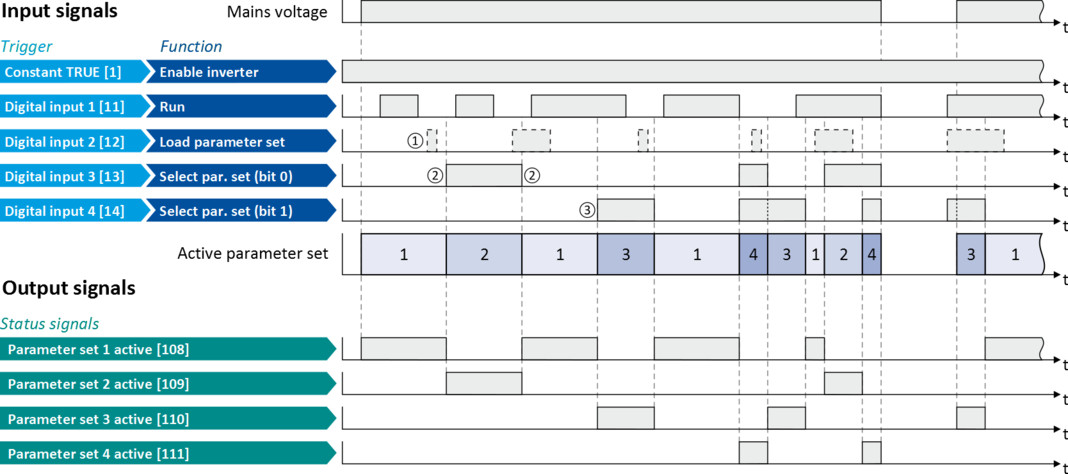

①
|
The "Load parameter set" function is ignored in this configuration.
|
|
②
|
Change-over takes place by a status change of the selection inputs.
|
|
③
|
Change-over is also possible if the inverter is enabled and the motor is started.
|
