Example 1: Input range 10 ... 85 kHz = setting range 0 ... 50 Hz

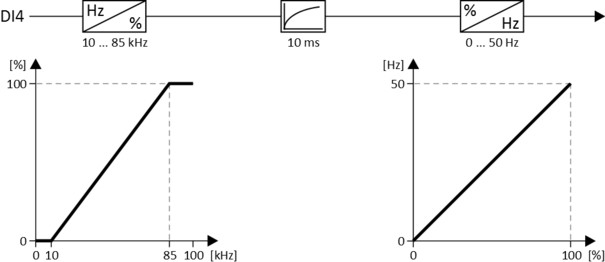

In this configuration, a frequency setpoint between 0 and 50 Hz can be set with an HTL input frequency between 10 and 85 kHz.
|
Parameter
|
Name
|
Setting for this example
|
|
HTL input settings: Minimum frequency
|
10000.0 Hz
|
|
|
HTL input settings: Maximum frequency
|
85000.0 Hz
|
|
|
HTL input settings: Minimum motor frequency
|
0.0 Hz
|
|
|
HTL input settings: Maximum motor frequency
|
50.0 Hz
|
|
|
HTL input settings: IN1 Filter time constant
|
10 ms
|
|
|
