Analog output 2

Settings for analog output 2.

Preconditions

Control Unit (CU) with application I/O

Details

The analog output 2 is controlled with the signal selected in 0x263A:002 (P441.02).

The following settings are possible for the analog output:

–

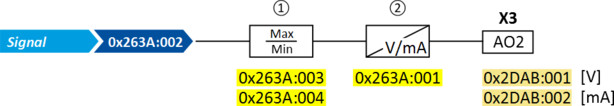

Definition of the signal range ①

–

Definition of the output range ②

Diagnostic parameters:

–

The current output voltage is displayed in 0x2DAB:002 (P113.02).

–

The actual output current is displayed in 0x2DAB:001 (P113.01).

For further details and configuration examples, see chapter "Analog output 1".

Parameter

Address	Name / setting range / [default setting]		Information
0x263A:001 (P441.01)	Analog output 2: Output range (Analog output 2: AO2 outp. range)		Definition of the output range.
	0	Inhibited
	1	0 ... 10 VDC
	2	0 ... 5 VDC
	3	2 ... 10 VDC
	4	4 ... 20 mA
	5	0 ... 20 mA
	11	0 ... 10 VDC (mirrored)	In these configurations, negative analog output values are symmetrically mirrored on the Y axis. Example: mirrored output range
	12	0 ... 5 VDC (mirrored)
	13	2 ... 10 VDC (mirrored)
	14	4 ... 20 mA (mirrored)
	15	0 ... 20 mA (mirrored)
0x263A:002 (P441.02)	Analog output 2: Function (Analog output 2: AO2 function) – For further possible settings, see parameter 0x2639:002 (P440.02).		Selection of the signal to be shown at analog output 2.
0x263A:002 (P441.02)	5	Motor current	Actual motor current (resolution: 0.1 A).
0x263A:003 (P441.03)	Analog output 2: Min. signal (Analog output 2: AO2 min. signal) -2147483648 ... [0] ... 2147483647		Definition of the signal value that corresponds to the minimum value at analog output 2. Example: configuration of analog output 1 as a 4 ... 20 mA current loop: output current 4 mA = 0x263A:003
0x263A:004 (P441.04)	Analog output 2: Max. signal (Analog output 2: AO2 max. signal) -2147483648 ... [1000] ... 2147483647		Definition of the signal value that corresponds to the maximum value at analog output 2. Example: configuration of analog output 1 as a 4 ... 20 mA current loop: output current 20 mA = 0x263A:004
0x263A:006 (P441.06)	Analog output 2: Filter time (Analog output 2: AO2 filter time) 0 ... [250] ... 10000 ms		Delay time for the output value of the analog output.
