Brake energy management
When braking electrical motors, the kinetic energy of the drive train is fed back regeneratively to the DC bus. This energy causes a DC-bus voltage boost. If the energy fed back is too high, the inverter reports an error.
Several different strategies can serve to avoid DC-bus overvoltage:
–
Use of a brake resistor
–
Stopping the deceleration ramp function generator when the active voltage threshold for the brake operation is exceeded
–
Use of the "Inverter motor brake" function
–
Combination of the above named options
–
DC-bus connection
Details
The voltage threshold for braking operation results on the basis of the rated mains voltage set:
|
Rated mains voltage
|
Voltage thresholds for braking operation
|
|
|
Braking operation on
|
Braking operation off
|
|
|
230 V
|
DC 390 V
|
DC 380 V
|
|
400 V
|
DC 725 V
|
DC 710 V
|
|
480 V
|
DC 780 V
|
DC 765 V
|
The voltage threshold for braking operation can be reduced by 0 ... 100 V. The reduction required must be set in 0x2541:003 (P706.03). However, the reduction must be made to such an extent that the reduced voltage threshold is still above the normal stationary DC-bus voltage.The active voltage threshold for the braking operation is displayed in 0x2541:002 (P706.02).
If the DC-bus voltage exceeds the voltage threshold for braking operation, the braking method selected in 0x2541:001 (P706.01) is applied.
–
Optimum following of the actual frequency value to the frequency setpoint (e. g. quick stop of the motor) can always be achieved by the use of a brake resistor.
–
Stopping the deceleration ramp function generator enables smoother deceleration with lower torque oscillation.
–
The "Inverter motor brake" function allows for quick braking without using a brake resistor. For process-related reasons, torque oscillations may occur.
|
|||
|

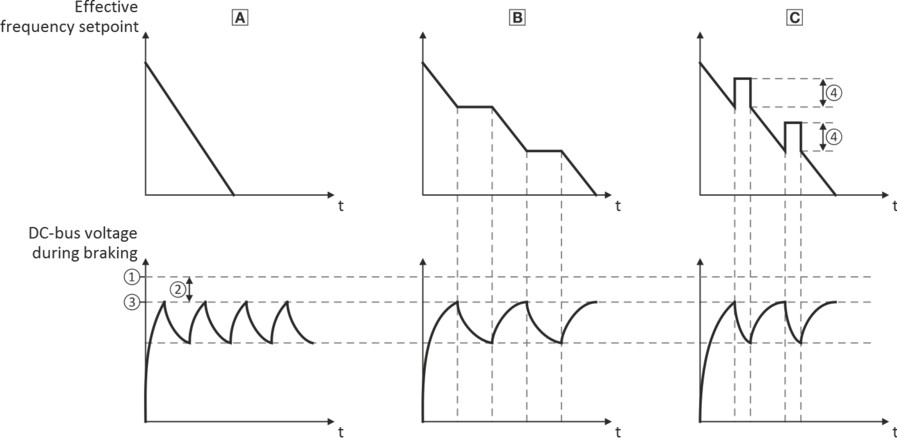

①
|
Voltage threshold for braking operation
|
0
|
|
|
②
|
Reduced threshold0x2541:003 (P706.03)
|
1
|
|
|
③
|
Active threshold0x2541:002 (P706.02)
|
2
|
|
|
④
|
Additional frequency0x2541:004 (P706.04)
|
|
|
Parameter
|
Address
|
Name / setting range / [default setting]
|
Information
|
|
|
0x2541:001
(P706.01)
|
Brake energy management: Operating mode
(Brake management: Operating mode)
|
Selection of the braking method.
–
The braking method(s) selected is/are activated if the DC-bus voltage exceeds the voltage threshold for the braking operation shown in 0x2541:002 (P706.02).
|
|
|
0
|
Brake resistor
|
The integrated brake chopper (brake transistor) is used.
|
|
|
1
|
Ramp function generator stop (RFGS)
|
The deceleration ramp function generator is stopped.
|
|
|
2
|
Brake resistor + RFGS
|
The brake resistor is supplied with current and the deceleration ramp function generator is stopped.
|
|
|
3
|
Inverter motor brake (IMB) + RFGS
|
Braking with the "Inverter motor brake" braking method in connection with "Deceleration ramp function generator stop" is executed.
|
|
|
4
|
Brake resistor + IMB + RFGS
|
Braking is performed by combining all three braking procedures.
|
|
|
0x2541:002
(P706.02)
|
Brake energy management: Active threshold
(Brake management: Active threshold)
–
Read only: x V
|
Display of the active voltage threshold for the braking operation.
–
The voltage threshold shown depends on the mains voltage selected in 0x2540:001 (P208.01) and the voltage value set in 0x2541:003 (P706.03).
–
The voltage threshold must be higher than the stationary DC voltage in the DC bus.
|
|
|
0x2541:003
(P706.03)
|
Brake energy management: Reduced threshold
(Brake management: Red. threshold)
0 ... [0] ... 100 V
|
The voltage threshold for the braking operation is reduced by the voltage value set here.
|
|
|
0x2541:005
(P706.05)
|
Brake energy management: Deceleration override time
(Brake management: Del.overr.time)
0.0 ... [2.0] ... 60.0 s
|
Maximum permissible time for the deceleration override by means of the braking method selected in 0x2541:001 (P706.01).
–
If the DC-bus voltage does not fall below the voltage threshold for braking operation shown in 0x2541:002 (P706.02) within this time, the motor is decelerated further.
–
The time is only reset if the voltage threshold shown in 0x2541:002 (P706.02) is not reached.
|
|
