Digital output 2
Settings for digital output 2.
Preconditions
Control Unit (CU) with application I/O
Details

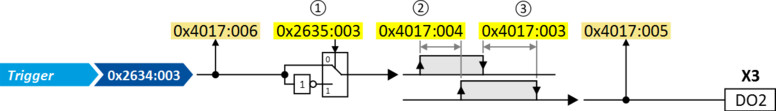

The digital output 2 is controlled with the trigger selected in 0x2634:003 (P420.03).
The following settings are possible for the digital output:
–
Inversion ①
–
Switch-on delay ②
–
Cutout delay ③
Diagnostic parameters:
–
The logic status of the trigger signal is displayed in 0x4017:006.
–
The logic status of the digital output is displayed in 0x4017:005.
Parameter
|
Address
|
Name / setting range / [default setting]
|
Information
|
|
|
0x2634:003
(P420.03)
|
Digital outputs function: Digital output 2
(Dig.out.function: DO2 function)
|
Assignment of a trigger to digital output 2.
Trigger = FALSE: X3/DO2 set to LOW level.
Trigger = TRUE: X3/DO2 set to HIGH level.
|
|
|
56
|
Fault active
|
TRUE if error is active. Otherwise FALSE.
|
|
|
100
|
Sequencer controlled
|
The control is executed via the sequencer (according to the configuration of the digital outputs for the
current segment).
|
|
|
0x2635:003
(P421.03)
|
Inversion of digital outputs: Digital output 2
(DO inversion: DO2 inversion)
|
Inversion of digital output 2
|
|
|
0
|
Not inverted
|
||
|
1
|
Inverted
|
||
|
0x4017:003
|
Digital output 2: Switch-off delay
0.000 ... [0.000] ... 65.535 s
|
Switch-off delay for digital output 2.
Note!
The set delay time is not effective (internally set to "0") if the digital output is assigned to the trigger "Release holding brake [115]". Only the deceleration time set in 0x2820:012 (P712.12) for closing the holding brake influences the time-dependent behaviour of the digital output.
|
|
|
0x4017:004
|
Digital output 2: Switch-on delay
0.000 ... [0.000] ... 65.535 s
|
Switch-on delay for digital output 2.
Note!
The set delay time is not effective (internally set to "0") if the digital output is assigned to the trigger "Release holding brake [115]". Only the deceleration time set in 0x2820:012 (P712.12) for closing the holding brake influences the time-dependent behaviour of the digital output.
|
|
|
0x4017:005
|
Digital output 2: Terminal state
–
Read only
|
Display of the logic state of output terminal X3/DO2.
|
|
|
0
|
FALSE
|
||
|
1
|
TRUE
|
||
|
0x4017:006
|
Digital output 2: Trigger signal state
–
Read only
|
Display of the logic state of the trigger signal for digital output 2 (without taking a ON/OFF delay set and inversion into consideration).
|
|
|
0
|
FALSE
|
||
|
1
|
TRUE
|
||
