Basic setting

In the following, the steps required for configuring the frequency control are described.

1.

Set 0x6060 (P301.00) to "MS: Velocity mode [-2]" operating mode (default setting).

2.

Select the standard setpoint source for the frequency control in 0x2860:001 (P201.01).

3.

Configure the selected standard setpoint source.

4.

Adjust the ramp times to the application.

5.

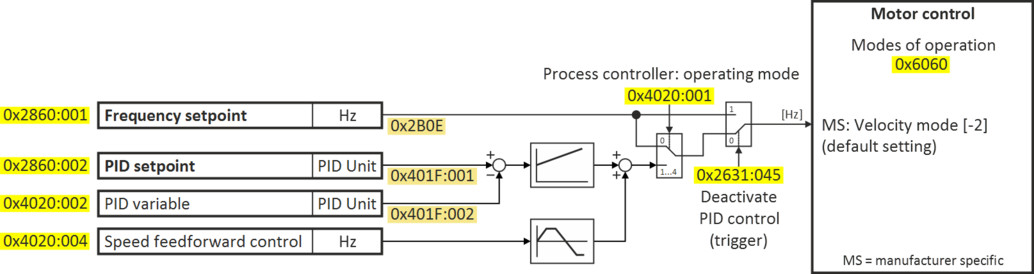

The following signal flow shows the internal setpoint logics:

The frequency control is now active and the inverter responds to the frequency setpoint given by the selected setpoint source.
