The VisiWin system module Recipes

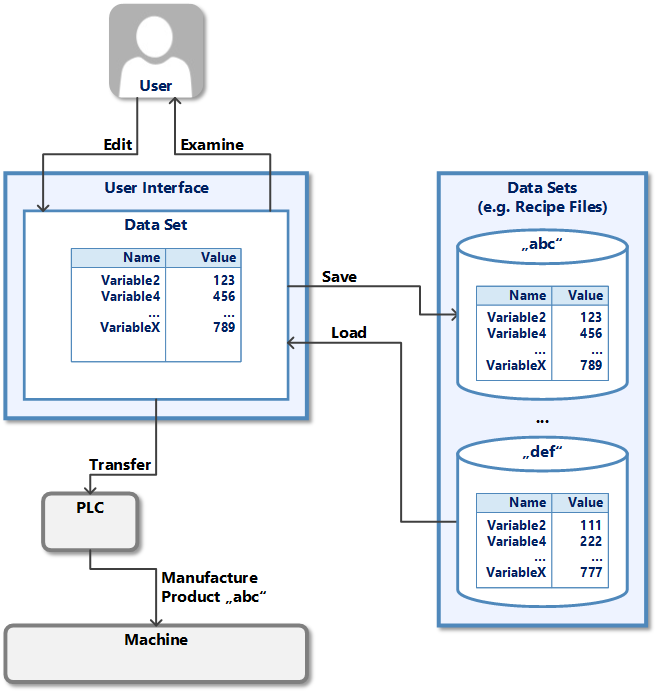

The system module Recipes manages data records of process values - called recipes in EASY UI Designer. These usually define the settings of a machine for manufacturing a specific product from a product range. By writing recipes to the PLC, it is possible to switch between the individual products to be manufactured. The recipes can be stored permanently on a storage medium, e.g. on the hard drive or in a database. The recipes and data within a recipe can be selected, edited and checked via the user interface.
Overview
The following chapters explain the individual parts of the system in more detail:
- Components
- This chapter explains the basic components of the system module and how they work together.
- Concepts and basics
- This chapter explains the concepts, principles and interrelationships behind the specific sub-components of the system module.
- Object definitions
- This chapter explains the functionality of the explicit objects available within the subcomponents, which must be defined in the system module in order to obtain data and data exchange at all.
- Configuration
- This chapter explains the basic configuration of the system module.
- Tools
- This chapter explains various tools that are helpful when creating object definitions in this system module.
