Trigger action if a frequency threshold is exceeded
As a function of the current output frequency, the adjustable frequency threshold serves to trigger a certain function or set a digital output.
Parameter
Example for operating mode
In the following example, the digital output 1 is set to TRUE if the output frequency is higher than 20 Hz.
–
The analog input 1 is set as standard setpoint source.
–
Switch S1 starts the motor in forward direction of rotation. De-Asserting switch S1 stops the motor again.
|

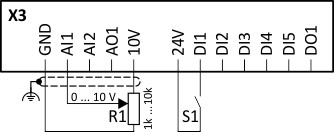

Connection plan
|
Function
|
|
|
|
Potentiometer R1
|
Frequency setpoint selection
|
|
Switch S1
|
Run
|
|
|
Parameter
|
Designation
|
Setting for this example
|
|
Enable inverter
|
Constant TRUE [1]
|
|
|
Run
|
Digital input 1 [11]
|
|
|
Digital outputs function: Digital output 1
|
Frequency threshold exceeded [70]
|
|
|
Control selection
|
Flexible I/O configuration [0]
|
|
|
Frequency control: Default setpoint source
|
Analog input 1 [2]
|
|
|
Frequency threshold
|
20 Hz
|
|
The status signals can be assigned to digital outputs.
 Configure digital outputs |
|
|
|
|
|
①
|
Frequency threshold 0x4005 (P412.00)
|
|
②
|

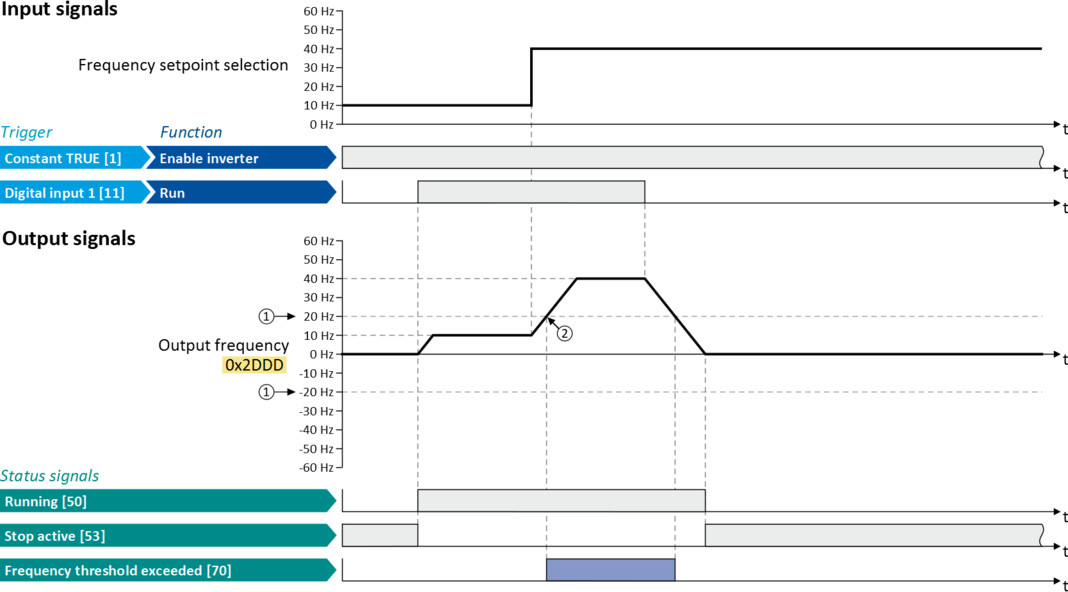

Frequency threshold exceeded: Via trigger "Frequency threshold exceeded [70]", the digital output 1 is set to TRUE.
|
