Checkbox

Checkbox for activating or deactivating an option.

Symbol
Menu ribbon	Start > Controls > Buttons > Switches and buttons > Checkbox

The "Checkbox" control element is used to display and change a binary process variable value. If the value is set (1/true), a rectangle with a tick is displayed, otherwise (0/false) an empty rectangle is displayed.

Checkbox activated (on) and checkbox deactivated (off)

The control element supports the following functionality:

Connection to a binary process variable(one bit) for the data source
Display of a language-switchable text for labelling
Display of a checkboxwith a graphic (tick)
Connection to the user administration for blocking operability
Display of the background, the frame, the shadow, etc.
Colour display of the background, frame, text, etc., also depending on the status of the control element

You can configure these functionalities via the properties in the Properties window when you select the control in the Designer or in the document outline. Whether a property is visible in the properties window depends on the style of the control.

By default, the control uses the "Plain.Default" style. Other system styles are available for the control in the "Style" property from the "General properties" category.

Certain properties may be missing in the Properties window for styled controls. For example, the "Colours" category is not available for controls in the system styles. These properties cannot be edited in the system styles.

You can also create your own styles for the control element. These styles are available for selection in the "Style" property after creation.

The control element consists of a number of other elements. Both the control itself and its elements can be configured via the properties of the control. Properties for a sub-element of the control can usually be found in the category that bears the name of this element.

Example: The properties for configuring the "Label" element can be found in the Properties window in the "Label" category when you select the control element in the Designer or in the document outline.

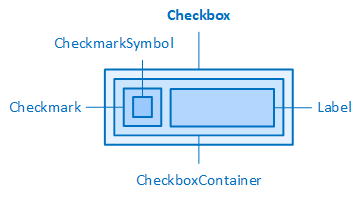

The checkbox and its elements

The checkbox contains a "Checkmark" element, which serves as a container for the "Checkmark symbol" element. If the style of the checkbox is reset, properties are available in the "Checkmark" category, which can be used to configure the following:

Graphic for the CheckmarkSymbol (CheckmarkSymbol, CheckmarkSymbolOff, CheckmarkSymbolOn, CheckmarkIconFont, CheckmarkSymbolMargin, CheckmarkSymbolSize, CheckmarkSymbolType)
Width and height of the checkmark (CheckmarkWidth, CheckmarkHeight)
Outer distances of the checkmark (CheckmarkMargin)
Border around the checkmark (CheckmarkBorderRadius, CheckmarkBorderStyle, CheckmarkBorderWidth)
