NumericVarIn

Input/output field for a numerical process variable value.

Symbol
Menu ribbon	Start > Controls > Input/output > Variable input > NumericVarIn

A variable value is entered and output via the "NumericVarIn" control element.

NumericVarIn with input

The control element supports the following functionality:

Connection to an analogue process variable(integer value/floating point value) for the data source
Buffering of user input for delayed writing of a process variable
Display of an error symbol and an error text if input limits are exceeded
Display of a language-switchable text for labelling
Display of the unitin addition to the variable value
Display of a language-switchable help text
Display of graphics in the control element
Display of the input field
Using an on-screen keyboard

The "UseTouchKeyboard" property determines whether the on-screen keyboard is opened for character input when the control element is clicked.
Representation of a watermark
Connection to the user administration for blocking operability
Display of the background, the frame, the shadow, etc.
Color display of the background, frame, text, etc., also depending on the status of the control element

You can configure these functionalities via the properties in the Properties window when you select the control in the Designer or in the document outline. Whether a property is visible in the properties window depends on the style of the control.

By default, the control uses the "Plain.Default" style. Other system styles are available for the control in the "Style" property from the "General properties" category.

Certain properties may be missing in the Properties window for styled controls. For example, the "Colors" category is not available for controls in the system styles. These properties cannot be edited in the system styles.

You can also create your own styles for the control element. These styles are available for selection in the "Style" property after creation.

The control element consists of a number of other elements. Both the control itself and its elements can be configured via the properties of the control. Properties for a sub-element of the control can usually be found in the category that bears the name of this element.

Example: The properties for configuring the "Label" element can be found in the Properties window in the "Label" category when you select the control element in the Designer or in the document outline.

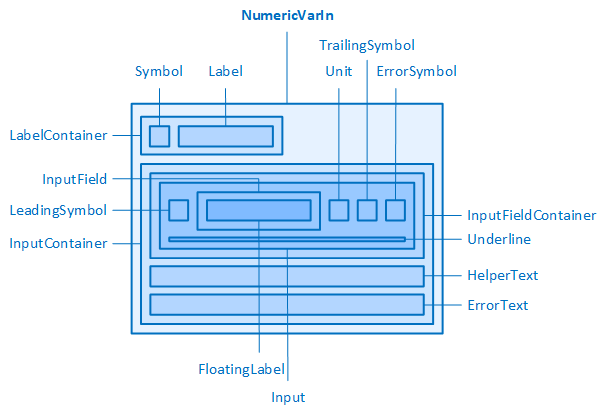

The NumericVarIn and its elements

The NumericVarIn contains an input field into which a value can be entered at runtime.

If the style of the NumericVarIn is reset, the following can be configured via the properties of the "Input" category:

Width and height of the "InputContainer" element (InputContainerWidth, InputContainerHeight)
Width and height of the "Input" element (InputWidth, InputHeight). The height is also automatically adopted for the higher-level "InputFieldContainer".
Outer distances of the "InputField" element (InputFieldMargin). The values for left and right automatically set the inner distances for the "Input" element.

You can use the value for Left of the "InputFieldMargin" property to move the input further to the right.

InputFieldMargin for left of 8 px (default setting) and 24 px
Border around the "Input" element (InputBorderRadius, InputBorderStyle, InputBorderWidth)
Text font and line height in the "Input" element (InputFontClass, InputTextContrast, InputFontSize, InputFontWeight, InputLineHeight)

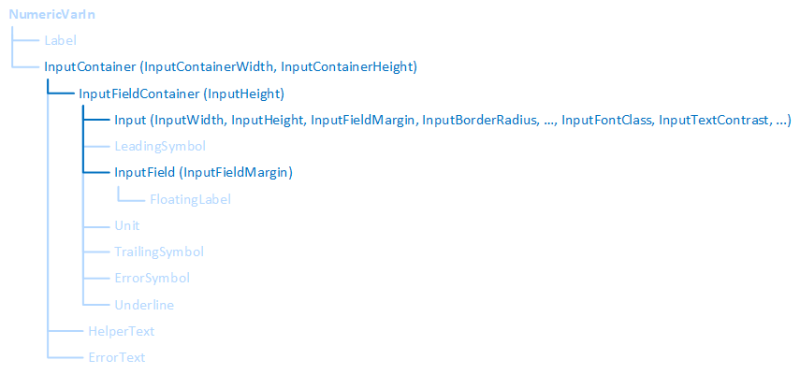

The following illustration shows how the elements are structurally connected and which properties affect which element:

InputContainer and its elements
